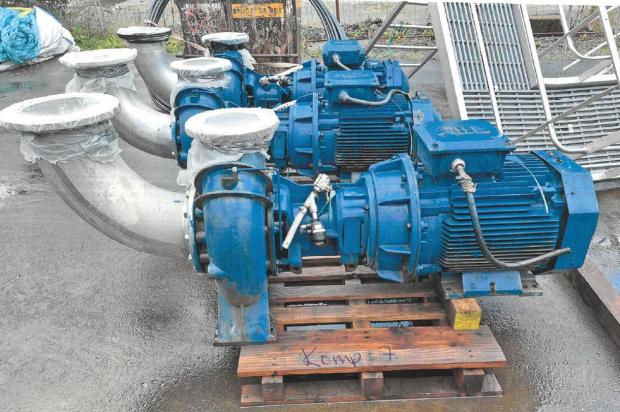

Sjøvannspumper
Pris 20 000,-
Nøkkelinfo
Fabrikat PG
Type PG - 150/250 N2 Z7
Modell 370 m3
Årsmodell 2019
Detaljinfo
Gjenstanden står i Vest-Agder
Sertifisert? Ja
Beskrivelse
Beskrivelse Vi har 40 stk!
PUMP DATA
Type:
PG - 150/250 N2 Z7
Construction
Centrifugal Pump - Single stage - Vertical/Hor. mounting
Suct./press. flange
Dn 200 / DN 150
Capacity
370,0 m3/h
Differential Pressure
30,0 mlc
Speed
1895 rpm
NPSHr
3,8 m
Absorbed power
39,5 kW
Viscosity
1,0 cSt
Spec. weight
1,025 kg/l
MATERIALS
Pump housing
Cast Iron GG-25 - with epoxy coating inside
Impeller
Bronze G-CuSn 10 - Ø 260 mm
Wearing rings
Bronze G-CuSn 10
Shaft
1,4021 Stainless Steel
Shaft sleeve
1,4462 Duplex Stainless Steel
Shaft seal
Mech. seal - Single acting
Baseplate
Mounted on pump foot
Flexsible coupling
Included
DRIVE
Motor make
M3BP 200MLB-4
Motor Drive end (DE) with fixed bearing
Variant codes; +186,+009,+451,+230
PTC termistor 150 °c
Motor type
43 kW
Motor power
3 x 440V
Voltage
65 Hz ( speed 1895 rpm)
Frequency
66,3 Amp
Current in
x 6,2
Start current Is/In
B35
Foot/flange
F, IP 55
isol. CL
1x 230 V-50 W
Heating element
Incl.
Type Approval
1895 rpm
Speed regulation up to 1895 Rpm by VSD to meet duty point
Motor Speed
Starting method: Frequency converter
Add. motor data
Rated at ambient temperature 45 deg. C.
Add. motor data
and temp. rise F, 95K acc. to DNV rules
Total weight
Approx.: 495,0 kg
Drawing no.
Pump: PGA02725
.
Ing Per
PUMP DATA
Type:
PG - 150/250 N2 Z7
Construction
Centrifugal Pump - Single stage - Vertical/Hor. mounting
Suct./press. flange
Dn 200 / DN 150
Capacity
370,0 m3/h
Differential Pressure
30,0 mlc
Speed
1895 rpm
NPSHr
3,8 m
Absorbed power
39,5 kW
Viscosity
1,0 cSt
Spec. weight
1,025 kg/l
MATERIALS
Pump housing
Cast Iron GG-25 - with epoxy coating inside
Impeller
Bronze G-CuSn 10 - Ø 260 mm
Wearing rings
Bronze G-CuSn 10
Shaft
1,4021 Stainless Steel
Shaft sleeve
1,4462 Duplex Stainless Steel
Shaft seal
Mech. seal - Single acting
Baseplate
Mounted on pump foot
Flexsible coupling
Included
DRIVE
Motor make
M3BP 200MLB-4
Motor Drive end (DE) with fixed bearing
Variant codes; +186,+009,+451,+230
PTC termistor 150 °c
Motor type
43 kW
Motor power
3 x 440V
Voltage
65 Hz ( speed 1895 rpm)
Frequency
66,3 Amp
Current in
x 6,2
Start current Is/In
B35
Foot/flange
F, IP 55
isol. CL
1x 230 V-50 W
Heating element
Incl.
Type Approval
1895 rpm
Speed regulation up to 1895 Rpm by VSD to meet duty point
Motor Speed
Starting method: Frequency converter
Add. motor data
Rated at ambient temperature 45 deg. C.
Add. motor data
and temp. rise F, 95K acc. to DNV rules
Total weight
Approx.: 495,0 kg
Drawing no.
Pump: PGA02725
.
Ing Per
